CART WITH TWO ROMS:

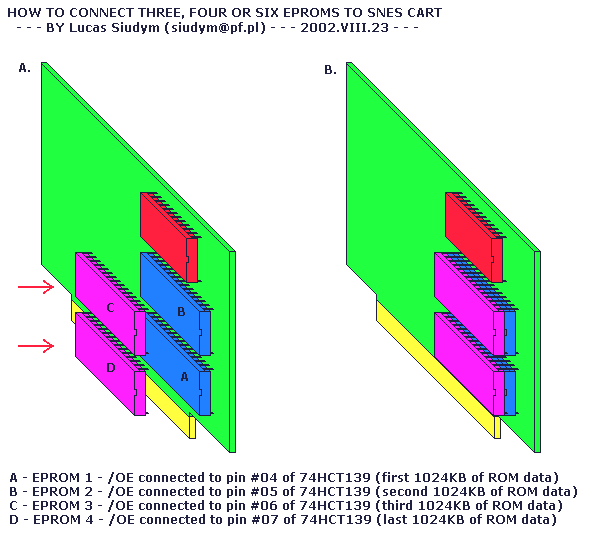

Picture "C" - if you want place this "four-EPROM-board" in cartridge plastic case.
Solder all pins/legs in bottom side of cart to jutting pins/legs of top eproms, separate only all /OE pins (to ls/hct139/138)

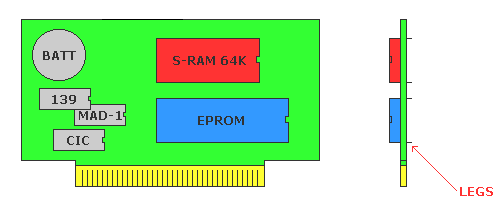

CART WITH ONE ROM:

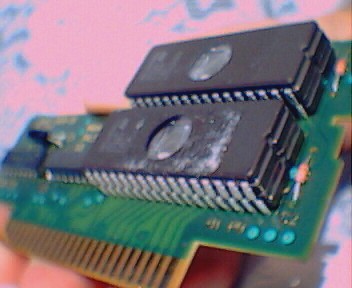

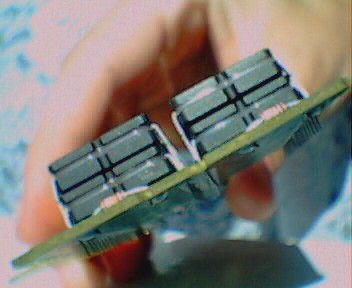

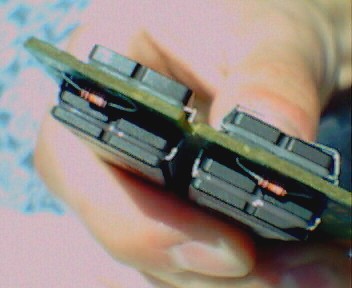

You can connect four EPROMs to one-rom-cart type, first two EPROMs on top of cart and next two EPROMs on bottom of cart (see last two pictures)
You can make "three-EPROM-cart" (using one-rom-cart type) and put this cart into plastic case (only three EPROMs on cart = max. 3MB)

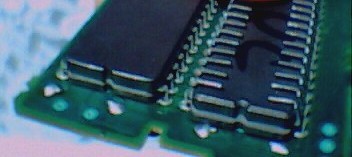

Three-EPROM-cart photos
***
