Connecting EPROM/FLASH to PCE cart

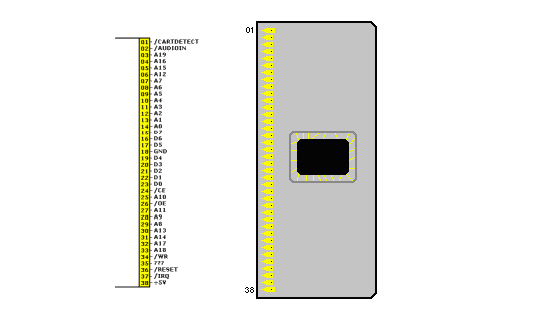

In the bottom side of PCE main cart you see black bubble

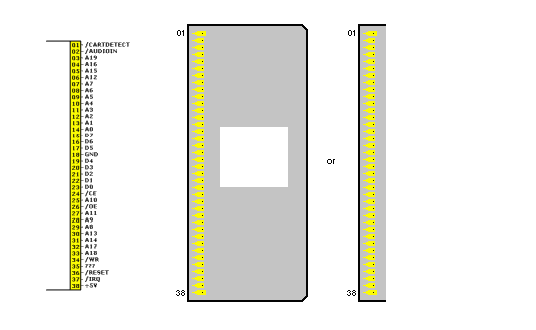

Remove this black bubble or cut main cart, remain/leave only the small board part with connector legs

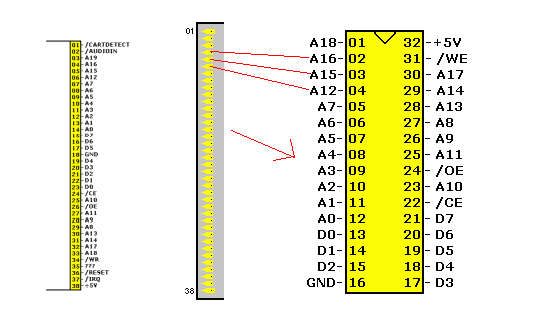

Connect board connector legs with EPROM/FLASH DIP socket (or directly to eprom legs). You can use 1MByte 27C080/27C801 EPROMS (PCE connector have pin with address A19).

***
